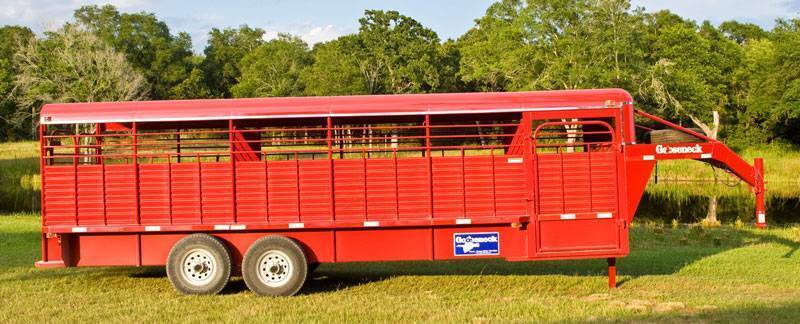

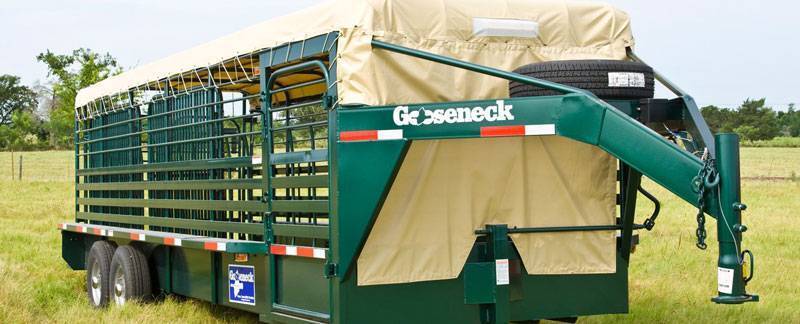

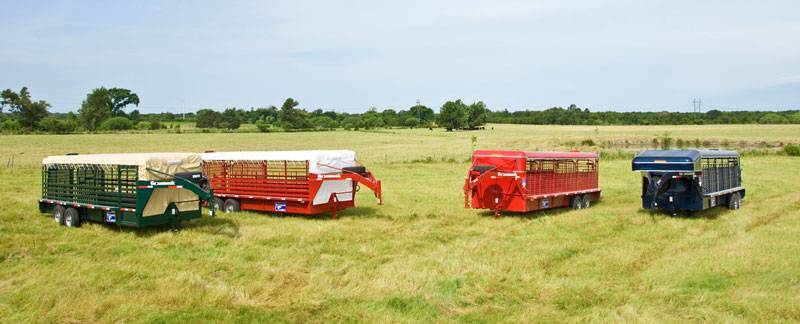

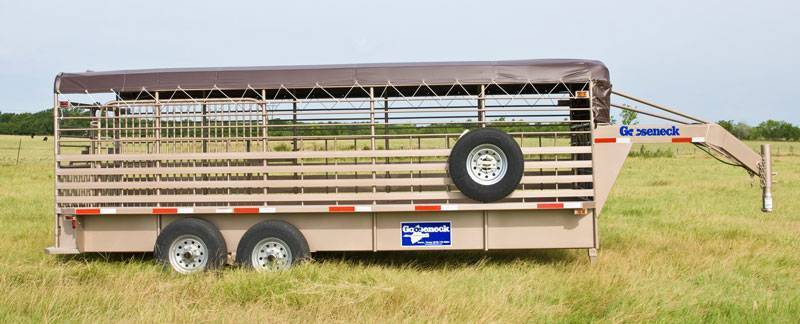

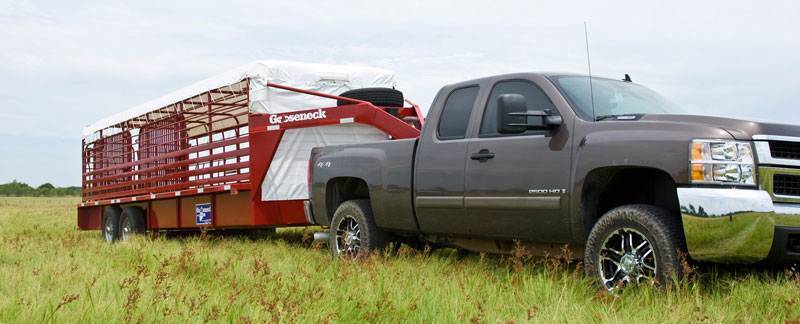

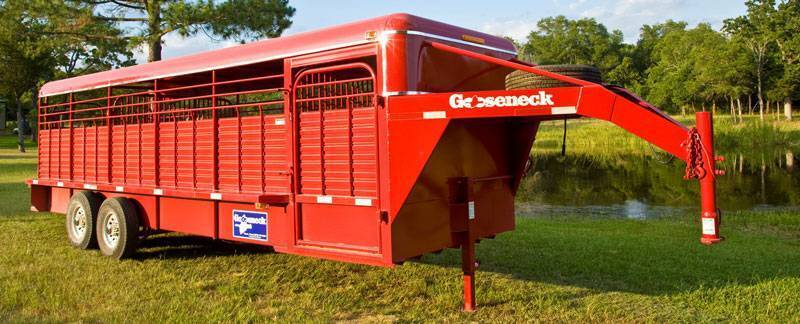

Steel Stock Goosenecks

• 16′, 20′, 24′, 28′, 32′, 36′, & 40′ lengths
• 5′, 6′, 6’6″, 6’8″ 7′, & 7’6″ widths
• 6’6″ bow height bartop
• 3 plank spaced sides
• 3/16′ or 7 gauge steel body and brush fender
• schedule 40 1¼” bow pipes on 4′ centers
• 4″ channel cross members on 4′ centers
• 2″ x 2″ x 3/16″ angle iron floor runners full length of trailer
• double T braces
• 3/16″ formed neck gusset
• 8″ channel iron neck up to 28′ and 10″ channel iron neck on 32′ and up
• adjustable 2-5/16″ (25K) ball coupler (hitch)
• schedule 40 heavy duty vertical pipe gates with one piece outer bow frame
• sandblasted, primed with rust inhibitive primer and painted with 2 coats of paint
• 2″ x 6″ and/or 2″ x 8″ treated pine floor
• split tailgate
• 1 crossgate (16′ & 20′ lengths)
• 2 crossgates (24′, 28′ & 32′ lengths)
• 3 crossgates (36′ & 40′ lengths)
• 1 spring loaded drop leg jack
• electric brakes (all axles)
• cambered spring axles
• 6K, 7K, 7.2K, 8K, and 10K axles available
• 8 hole 16″ wheels
• 235 85 R16 radial tires
• center caps
• spare tire and rack
• safety chains
• lights meet U.S.DOT required specifications
• conspicuity (reflective) tape
• 4″ x 2″ rectangle tube bumper
• 3-light LED bars on front and rear
• 5 year limited warranty

OPTIONAL FEATURES

• roper special
• special paint colors
• epoxy primer
• 7′ and 7’6″ bow heights
• extra 2″ x 2″ x 3/16″ angle iron floor runners
• 18oz. vinyl coated canvas top and front (different colors available)
• 18oz. vinyl coated canvas feeder (pipe nose) (different colors available)
• 18oz. vinyl coated canvas side curtains (different colors available)
• metal top and front
• metal front from neck down
• open vertical pipe front from neck down
• 4′ or 6′ enclosed straight, sloped, or tapered nose
• 4′ or 6′ pipe nose
• outside nose door
• 4, 5, 6, or 7 plank sides
• 4, 5, 6, or 7 1″or 3″ rectangular tubing sides
• pipe sides
• solid smooth sides
• punch panel sides
• upper t braces
• extra crossgate
• removable crossgate
• split crossgate
• side/swing crossgate
• solid smooth crossgate
• bull gates with double bows
• double bows
• slide/swing tailgate
• swing tailgate
• removable racks
• mini ramps
• full width rear horse loading ramp (spring assisted)
• half or full escape door
• cleated or flat rubber floorboards
• double deck floor
• double deck rails and gates
• electric over hydraulic brakes
• rubber torsion axles
• 10K G.D. rubber torsion axles 12K and 15K axles on some trailers
• LR G (14ply) radial tires
• extra spare tire and rack
• rubber dock bumper
• underbody toolbox
• 2 single speed drop leg jacks
• 2 drops leg jacks with 2 speed gear box
• electric over hydraulic jack
• adjustable eye-bolt hitch
• LED lights
• top light bar with back-up lights
• dome lights
• extra clearance lights
• spotlights
• porch lights
• rubber floor mats
• rubber wall mats
• any length dressing room with door, straight or slant
• rear tack room
• self contained removable rear tack room
• rear van doors
• 8′ hay rack with ladder
• bus windows
• roof vents
• butterfly vents
• horse dividers
• pads for horse dividers
• saddle racks
• tack hooks
• tie hooks
• brush trays
• blanket bar
• clothes rack
• colored vinyl trim
• aluminum gravel guard
• 5″ x 5″ angle cap at axles or full trailer length
• extra 4″ channel crossmembers

Feature PDF
